Allegro provides a recommended PCB layout in the application note AN296068, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The sense resistor value depends on the maximum current rating of the A8904SLB-T and the desired current sense accuracy. Allegro provides a sense resistor calculation tool on their website, which can help determine the optimal sense resistor value based on the specific application requirements.
The A8904SLB-T has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
The A8904SLB-T is designed for low-voltage applications up to 5.5 V. While it can tolerate some voltage transients, it's not recommended for high-voltage applications. If you need a high-voltage solution, consider using a different Allegro product or consulting with their application engineers.
Allegro provides a troubleshooting guide in the application note AN296069, which covers common issues and their possible causes. Additionally, Allegro's technical support team can provide assistance and guidance to help resolve specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A8904SLB-T Overview

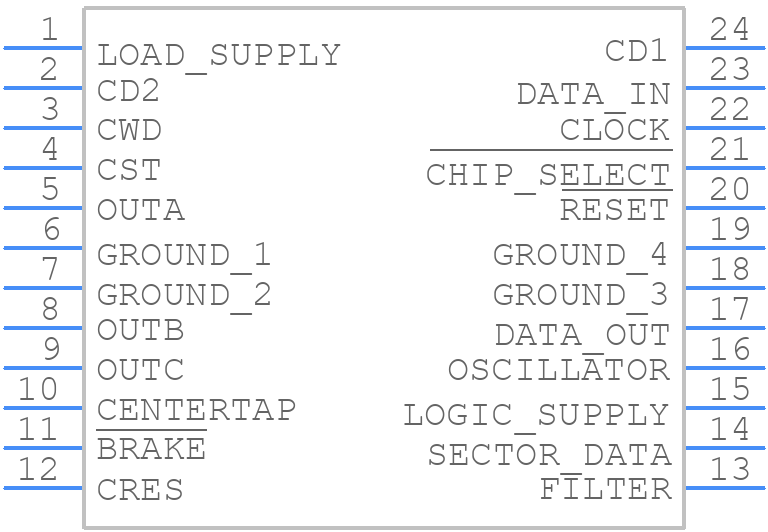

Use the download button to access the A8904SLB-T schematic symbol, PCB footprint, and 3D model.
