A89503KLPTR-3 - Allegro Microsystems

Description: 80V ASIL Half-Bridge MOSFET Gate Drive for Series Loads

Download A89503KLPTR-3 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this A89503KLPTR-3 model

Email notifications will be applied after download.

Send part feedback

Symbol

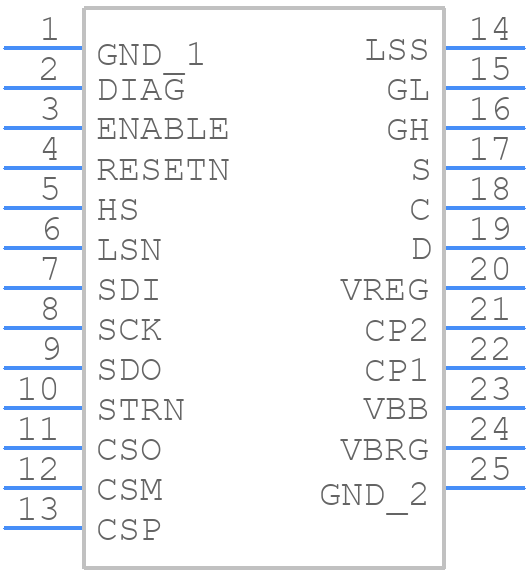

A89503KLPTR-3 - Allegro Microsystems - PCB symbol

PCB Footprints

A89503KLPTR-3 - Allegro Microsystems PCB footprint - Other - Other - LP Package, 24-Pin TSSOP

3D Models

A89503KLPTR-3 - Allegro Microsystems - 3D model - Other - LP Package, 24-Pin TSSOP

Datasheet Download Datasheet
Stock & Prices Price & Stock for A89503KLPTR-3
Part Number A89503KLPTR-3
Manufacturer Allegro Microsystems
Pin Count 25
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - LP Package, 24-Pin TSSOP
Released Date Feb 6, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

A89503KLPTR-3 Details

Manufacturer Part Number:
A89503KLPTR-3
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2020-03-23
Manufacturer:
Allegro MicroSystems LLC
YTEOL:
7
Interface IC Type:
HALF BRIDGE BASED MOSFET DRIVER

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

A89503KLPTR-3 Overview

Use the download button to access the A89503KLPTR-3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like A8950, or try a keyword search, such as MOSFET Drivers
