- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for A9619-CL
- Part Number A9619-CL
- Manufacturer COILCRAFT
- Pin Count 10
- Part Category Transformer
- Package Category Other

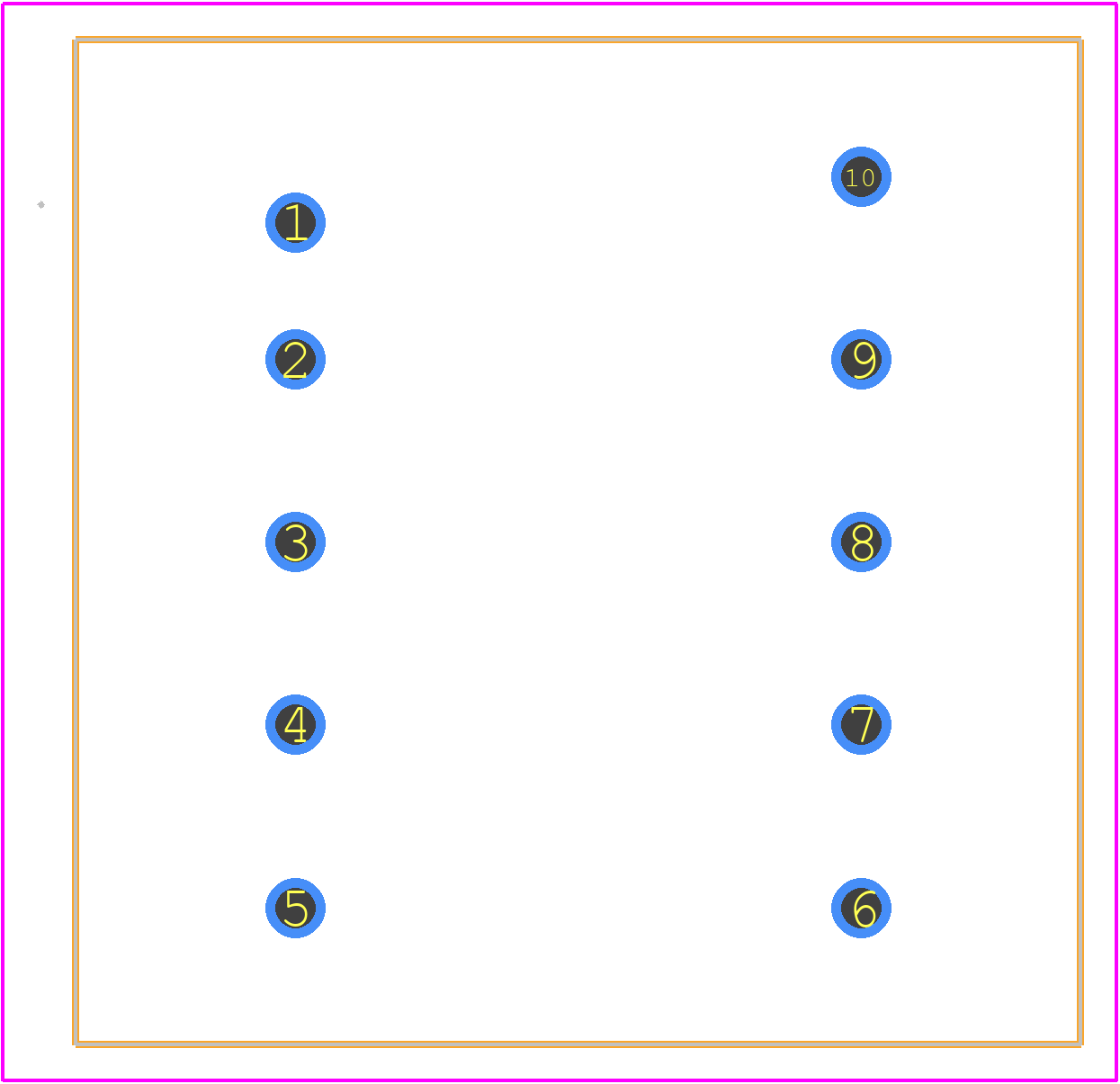

- Footprint Name Other - A9619-CL-1
- Released Date Feb 1, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
A9619-CL Details
-
Manufacturer Part Number:
A9619-CL
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Coilcraft Inc
-
YTEOL:
6
-
Height:
24.13 mm
-
JESD-609 Code:
e2
-
Length:
27.94 mm
-
Mounting Feature:
THROUGH HOLE MOUNTED
A9619-CL Frequently Asked Questions (FAQs)
-
Coilcraft recommends a land pattern with a minimum pad size of 2.5 mm x 1.5 mm and a non-solder mask defined (NSMD) pad shape to ensure reliable assembly and minimize thermal resistance.
-
The A9619-CL is rated for operation up to 125°C, but derating is required for temperatures above 80°C. Consult the datasheet for specific derating curves and guidelines.
-
The A9619-CL is a shielded inductor, but it's still important to follow proper PCB layout and design guidelines to minimize magnetic interference and ensure optimal performance.
-
The SRF of the A9619-CL is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. Typically, the SRF is above 100 MHz for this component.
-
The A9619-CL is rated for a maximum current of 3.8 A, but it's essential to consider the inductor's temperature rise, DC resistance, and saturation characteristics when designing for high-current applications.
Trust Checks
Expert Contribution
System Verified
Community Approved
A9619-CL Overview

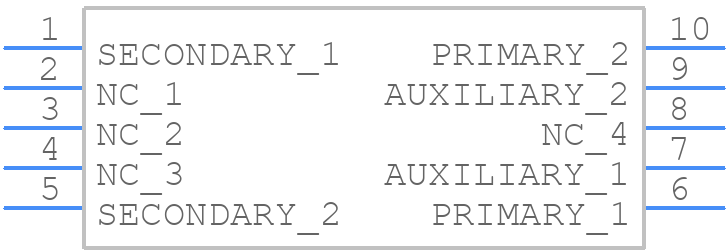

Use the download button to access the A9619-CL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A9619,
or try a keyword search, such as SMPS Transformers
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
