AA58F - Toward Relay

Description: Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)

Download AA58F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

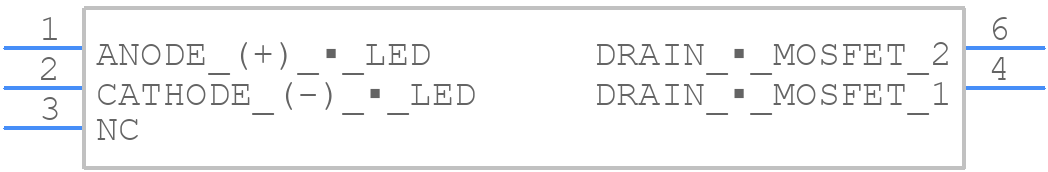

AA58F - Toward Relay - PCB symbol
click to zoom
PCB Footprints
AA58F - Toward Relay PCB footprint - Other - Other - SMD6-5
click to zoom
3D Models
AA58F - Toward Relay - 3D model - Other - SMD6-5
click to zoom

AA58F Details

  • Manufacturer Part Number:

    AA58F

  • Part Life Cycle Code:

    Contact Manufacturer

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Bright Toward Industrial Co Ltd

  • Additional Feature:

    AEC-Q101

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Control Current:

    0.002 A

  • Control Voltage:

    1 V

  • Forward Current-Max:

    0.05 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-state Resistance-Max:

    200 Ω

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.4 mm

  • Overall Length:

    8.8 mm

  • Packing Method:

    TUBE

  • Surface Mount:

    YES
