Allegro provides a recommended PCB layout in their application note AN296040, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize noise.
The AAS33001LLPBTR-5-DD has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the PCB.
Allegro recommends using a low-pass filter with a cutoff frequency of around 100 kHz to 200 kHz to filter out high-frequency noise and ensure accurate current sensing. The filter configuration may vary depending on the specific application and noise environment.
The AAS33001LLPBTR-5-DD requires calibration to ensure accurate current measurement. Allegro provides a calibration procedure in their application note AN296040, which involves applying a known current to the device and adjusting the offset and gain registers to achieve accurate measurement.
The maximum allowable voltage on the VCC pin is 5.5 V, as specified in the datasheet. Exceeding this voltage may damage the device or affect its performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AAS33001LLPBTR-5-DD Overview

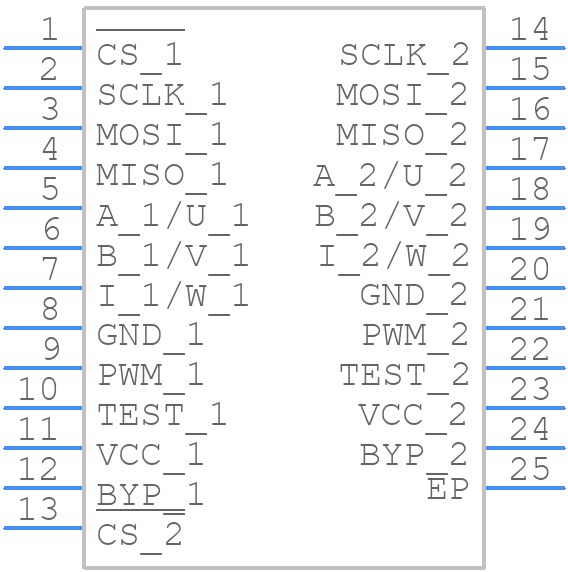

Use the download button to access the AAS33001LLPBTR-5-DD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AAS33,
or try a keyword search, such as Rotary Position Sensors
