A good PCB layout for the AAT3693IDH-AA-T1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
To ensure proper thermal management, ensure the device is mounted on a PCB with a solid ground plane, use thermal vias to dissipate heat, and consider using a heat sink or thermal interface material if the device will be operating at high temperatures or high currents.
Not following the recommended input capacitor values and types can lead to reduced performance, increased noise, and potentially even device damage or failure. It is essential to follow the recommended capacitor values and types to ensure proper operation and reliability.
To troubleshoot issues with the AAT3693IDH-AA-T1, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly configured and that the input and output capacitors are correctly sized and connected. Use an oscilloscope to monitor the device's behavior and identify any anomalies.
The AAT3693IDH-AA-T1 is rated for operation up to 125°C, but high temperatures can affect its performance and reliability. When operating in high-temperature environments, ensure proper thermal management, reduce the device's power dissipation, and consider derating the device's performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AAT3693IDH-AA-T1 Overview

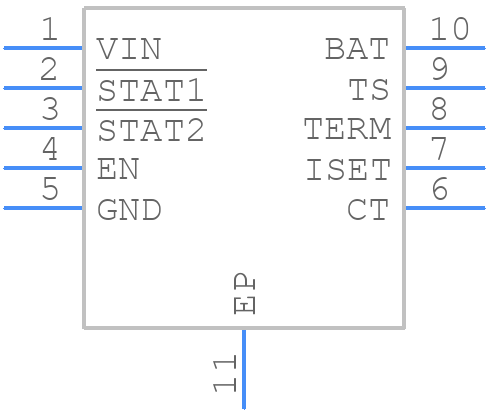

Use the download button to access the AAT3693IDH-AA-T1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AAT36,
or try a keyword search, such as Power Management Circuits
