Part Image

AAT4610IGV-T1 - ANALOGIC TECH

Description: Current Limited Load Switch

Download AAT4610IGV-T1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

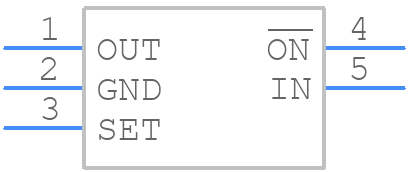

Symbol
AAT4610IGV-T1 - ANALOGIC TECH - PCB symbol
click to zoom
PCB Footprints
AAT4610IGV-T1 - ANALOGIC TECH PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SOT23-5
click to zoom
3D Models
AAT4610IGV-T1 - ANALOGIC TECH - 3D model - SOT23 (5-Pin) - SOT23-5
click to zoom

AAT4610IGV-T1 Details

  • Manufacturer Part Number:

    AAT4610IGV-T1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOT-23, 5 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    Load switch

  • JESD-30 Code:

    R-PDSO-G5

  • Length:

    2.85 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • On-state Resistance-Max (Ron):

    0.18 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max (Isup):

    0.03 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    2000 ns

  • Switch-on Time-Max:

    200000 ns

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Width:

    1.575 mm

AAT4610IGV-T1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AAT4610IGV-T1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
  • To ensure proper thermal management, ensure a good thermal interface between the device and the PCB, use a heat sink if necessary, and keep the device away from heat sources. The maximum junction temperature is 150°C.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input capacitor, depending on the input voltage and desired ripple performance.
  • The AAT4610IGV-T1 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. Consult the datasheet and application notes for guidance on high-temperature operation.
  • To troubleshoot issues, check the input voltage, output load, and PCB layout. Verify that the device is properly soldered and that the input and output capacitors are of the correct value and type. Consult the datasheet and application notes for guidance on troubleshooting.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AAT4610IGV-T1 Overview

Use the download button to access the AAT4610IGV-T1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AAT46, or try a keyword search, such as Power Management Circuits
