Technical Content
Part Image

AB0805-T3 - ABRACON

Description: Real Time Clock (RTC) IC Clock/Calendar 256B I²C, 2-Wire Serial 16-VFQFN Exposed Pad

Download AB0805-T3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

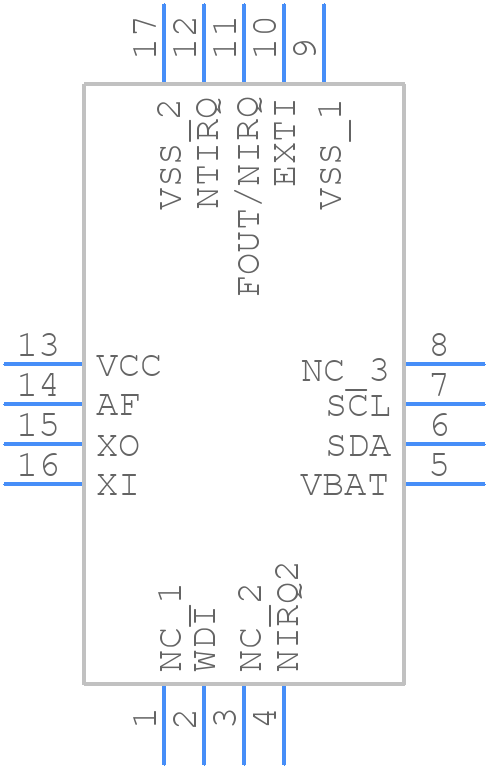

Symbol
AB0805-T3 - ABRACON - PCB symbol
click to zoom
PCB Footprints
AB0805-T3 - ABRACON PCB footprint - Other - Other - AB0805-T3
click to zoom
3D Models
AB0805-T3 - ABRACON - 3D model - Other - AB0805-T3
click to zoom

AB0805-T3 Details

  • Manufacturer Part Number:

    AB0805-T3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, QFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    7.02

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C)

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.5 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

AB0805-T3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the AB0805-T3 is a rectangular pad with a size of 0.5 mm x 0.5 mm, with a non-solder mask defined (NSMD) pad shape.
  • The AB0805-T3 has a thermal resistance of 150°C/W. To handle thermal considerations, ensure good thermal conduction by using a thermal pad or a heat sink, and avoid overheating the component.
  • The recommended soldering profile for the AB0805-T3 is a peak temperature of 240°C, with a dwell time of 30-60 seconds above 217°C. Avoid exceeding 260°C to prevent damage to the component.
  • Yes, the AB0805-T3 is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting and soldering to prevent component failure.
  • Review the datasheet and consult with Abracon Corporation's application engineers to ensure the AB0805-T3 meets your specific application's requirements, including frequency, power handling, and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AB0805-T3 Overview

Use the download button to access the AB0805-T3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AB080, or try a keyword search, such as Timers or RTCs
