A good PCB layout for the AB26T-32.768KHZ-6-B involves keeping the crystal oscillator close to the microcontroller, using a ground plane, and minimizing signal traces to reduce noise and EMI.
To ensure reliable startup, make sure the power supply is stable, the crystal oscillator is properly connected, and the microcontroller is configured to use the external clock source. Also, consider adding a capacitor in parallel with the crystal to improve startup reliability.
The AB26T-32.768KHZ-6-B is rated for operation from -40°C to +85°C. However, it's essential to note that the frequency tolerance and stability may vary with temperature, so ensure your design takes this into account.
The AB26T-32.768KHZ-6-B is designed to operate at 32.768 kHz. If your microcontroller requires a different frequency, you may need to use a different crystal oscillator or consider using a clock generator IC to multiply or divide the frequency.
To minimize EMI and noise sensitivity, use a shielded enclosure, keep the crystal oscillator away from noisy components, and use a low-pass filter or ferrite bead to filter out high-frequency noise.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AB26T-32.768KHZ-6-B Overview

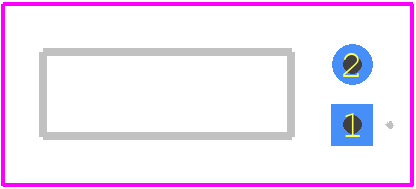

Use the download button to access the AB26T-32.768KHZ-6-B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AB26T,
or try a keyword search, such as Quartz Crystals
