AB26TRQ-32.768KHZ-T - ABRACON

Description: 32.768 kHz ±20ppm Crystal 12.5pF 50 kOhms Cylindrical Can, Radial

Download AB26TRQ-32.768KHZ-T Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AB26TRQ-32.768KHZ-T model

Email notifications will be applied after download.

Send part feedback

Symbol

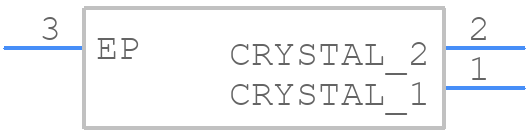

AB26TRQ-32.768KHZ-T - ABRACON - PCB symbol

PCB Footprints

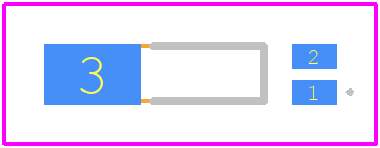

AB26TRQ-32.768KHZ-T - ABRACON PCB footprint - Other - Other - AB26TRQ-32.768KHZ-T

Datasheet Download Datasheet
Stock & Prices Price & Stock for AB26TRQ-32.768KHZ-T
Part Number AB26TRQ-32.768KHZ-T
Manufacturer ABRACON
Pin Count 3
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - AB26TRQ-32.768KHZ-T
Released Date Feb 9, 2021
Last Modified Date May 8, 2024 12:04 PM UTC
Pinout / Pin List Click Here (Member Only)

AB26TRQ-32.768KHZ-T Details

Manufacturer Part Number:
AB26TRQ-32.768KHZ-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, MINIATURE, SMD, 2 PIN
Country Of Origin:
Switzerland
ECCN Code:
EAR99
HTS Code:
8541.60.00.10
Factory Lead Time:
12 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
TR, 7 INCH
Aging:
3 PPM/FIRST YEAR
Crystal/Resonator Type:
PARALLEL - FUNDAMENTAL
Drive Level:
1 µW
Frequency Stability:
0.0126%
Frequency Tolerance (MHz):
20
Load Capacitance:
12.5 pF
Mounting Feature:
SURFACE MOUNT
Operating Frequency-Nom:
0.032768 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Packing Method:
TR, 7 INCH
Physical Dimension:
L5.2XB1.45XH1.55 (mm)/L0.205XB0.057XH0.061 (inch)
Series Resistance:
65000 Ω
Surface Mount:
YES

AB26TRQ-32.768KHZ-T Frequently Asked Questions (FAQs)

The recommended storage temperature range for the AB26TRQ-32.768KHZ-T is -40°C to +125°C.
Yes, the AB26TRQ-32.768KHZ-T is designed to operate in high-vibration environments and can withstand vibrations up to 20G.
The typical power consumption of the AB26TRQ-32.768KHZ-T is around 1-2 μW, depending on the operating frequency and load capacitance.
Yes, the AB26TRQ-32.768KHZ-T is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
The recommended operating temperature range for the AB26TRQ-32.768KHZ-T is -20°C to +70°C.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

AB26TRQ-32.768KHZ-T Overview

Use the download button to access the AB26TRQ-32.768KHZ-T schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AB26T, or try a keyword search, such as Quartz Crystals
