ABL-8.000MHZ-B4Y-T - ABRACON

Description: Oscillator MEMS 20MHz/ 25MHz ±25ppm (Stability) CMOS 55% 1.8V/2.5V/3.3V 4-Pin VFLGA SMD T/R

Download ABL-8.000MHZ-B4Y-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ABL-8.000MHZ-B4Y-T - ABRACON - PCB symbol
click to zoom
PCB Footprints

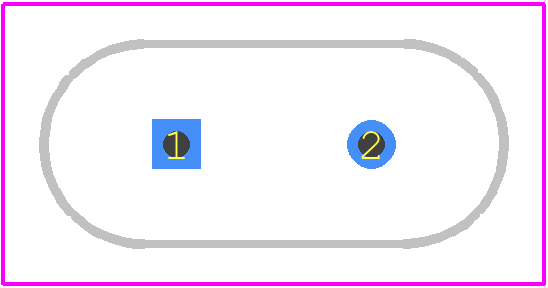

ABL-8.000MHZ-B4Y-T - ABRACON PCB footprint - Other - Other - ABL
click to zoom
3D Models
ABL-8.000MHZ-B4Y-T - ABRACON - 3D model - Other - ABL
click to zoom

ABL-8.000MHZ-B4Y-T Details

  • Manufacturer Part Number:

    ABL-8.000MHZ-B4Y-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HC/49US, 2 PIN

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.60.00.50

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6.2

  • Additional Feature:

    AT CUT; TR

  • Aging:

    5 PPM/YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    100 µW

  • Frequency Stability:

    0.003%

  • Frequency Tolerance:

    30 ppm

  • JESD-609 Code:

    e3

  • Load Capacitance:

    18 pF

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Frequency-Nom:

    8 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Physical Dimension:

    L11.5XB5.0XH3.5 (mm)/L0.453XB0.197XH0.138 (inch)

  • Series Resistance:

    80 Ω

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

ABL-8.000MHZ-B4Y-T Frequently Asked Questions (FAQs)

  • Abracon recommends a layout with a solid ground plane, minimal signal trace length, and a 10nF decoupling capacitor between VCC and GND, placed as close as possible to the oscillator.
  • The oscillator is designed to operate up to 85°C, but its frequency stability may degrade above 70°C. For high-reliability applications, consider using a more temperature-stable oscillator or implementing temperature compensation.
  • Yes, the ABL-8.000MHZ-B4Y-T is designed to meet EMI requirements. However, to minimize emissions, ensure proper PCB layout, use a shielded enclosure, and consider adding EMI filters or shielding components.
  • The typical start-up time is around 2-5ms, but this can vary depending on the specific application and power supply conditions.
  • While the ABL-8.000MHZ-B4Y-T is a high-quality oscillator, it may not meet the specific requirements of safety-critical applications. Consult with Abracon or a qualified engineer to determine the oscillator's suitability for your specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ABL-8.000MHZ-B4Y-T Overview

Use the download button to access the ABL-8.000MHZ-B4Y-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ABL-8, or try a keyword search, such as Quartz Crystals
