ABM10-32.000MHZ-D30-T3 footprint, schematic symbol and 3D model by ABRACON

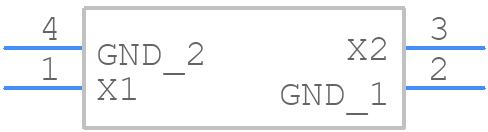

Symbol

PCB Footprints

3D Models

ABM10-32.000MHZ-D30-T3 Details

The operating temperature range of the ABM10-32.000MHZ-D30-T3 is -40°C to +85°C.
Yes, the ABM10-32.000MHZ-D30-T3 is suitable for high-reliability applications, as it is designed and manufactured to meet the requirements of AEC-Q200, a standard for automotive applications.
The frequency stability of the ABM10-32.000MHZ-D30-T3 is ±30 ppm over the operating temperature range.
Yes, the ABM10-32.000MHZ-D30-T3 is designed to operate in harsh environments, including high vibration, shock, and humidity.
Yes, the ABM10-32.000MHZ-D30-T3 is RoHS and REACH compliant, making it suitable for use in a wide range of applications, including those in the European Union.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ABM10-32.000MHZ-D30-T3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ABM10, or try a keyword search, such as Quartz Crystals
