ABM2-16.000MHZ-D4Y-T - ABRACON

Description: CERAMIC SMD MICROPROCESSOR CRYSTAL

Download ABM2-16.000MHZ-D4Y-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ABM2-16.000MHZ-D4Y-T - ABRACON - PCB symbol
click to zoom
PCB Footprints

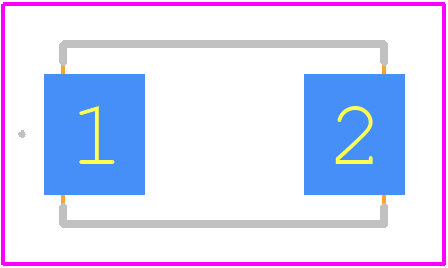

ABM2-16.000MHZ-D4Y-T - ABRACON PCB footprint - Other - Other - ABM2-16.000MHZ-D4Y-T-2
click to zoom
3D Models
ABM2-16.000MHZ-D4Y-T - ABRACON - 3D model - Other - ABM2-16.000MHZ-D4Y-T-2
click to zoom

ABM2-16.000MHZ-D4Y-T Details

  • Manufacturer Part Number:

    ABM2-16.000MHZ-D4Y-T

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 2 PIN

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8541.60.00.50

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6.8

  • Additional Feature:

    AT CUT; TAPE AND REEL

  • Aging:

    5 PPM/FIRST YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    10 µW

  • Frequency Stability:

    0.003%

  • Frequency Tolerance (MHz):

    30

  • JESD-609 Code:

    e4

  • Load Capacitance:

    18 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    16 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Physical Dimension:

    L8.0XB4.5XH1.4 (mm)/L0.315XB0.177XH0.055 (inch)

  • Series Resistance:

    50 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

ABM2-16.000MHZ-D4Y-T Frequently Asked Questions (FAQs)

  • The recommended soldering temperature profile is 260°C for 10 seconds, with a peak temperature of 240°C for 5 seconds. It's essential to follow the recommended profile to prevent damage to the device.
  • To ensure reliable startup, ensure the power supply voltage is stable and within the recommended range (1.8V to 3.3V). Also, add a 10kΩ to 22kΩ pull-up resistor between the output pin and VCC to prevent oscillations.
  • The maximum frequency deviation over the operating temperature range (-20°C to 70°C) is ±100 ppm. This deviation is due to the crystal's natural frequency variation with temperature.
  • Yes, the ABM2-16.000MHZ-D4Y-T is designed to withstand vibrations up to 10G. However, it's essential to ensure the device is properly mounted and secured to prevent mechanical stress.
  • The recommended PCB layout and land pattern can be found in the Abracon Corporation's application note AN-04. It's essential to follow the recommended layout to ensure optimal performance and minimize electromagnetic interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ABM2-16.000MHZ-D4Y-T Overview

Use the download button to access the ABM2-16.000MHZ-D4Y-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ABM2-, or try a keyword search, such as Quartz Crystals
