The recommended termination resistance for the ABM3-11.2896MHZ-D2Y-T is 1 kΩ to ensure proper signal integrity and minimize reflections.
To ensure reliable startup, make sure to decouple the power supply with a 10 μF capacitor and a 100 nF capacitor in parallel, and provide a stable voltage supply within the recommended operating range.
The ABM3-11.2896MHZ-D2Y-T has a frequency stability of ±50 ppm over the operating temperature range of -40°C to 85°C, which translates to a maximum frequency deviation of approximately ±289.6 Hz.
The ABM3-11.2896MHZ-D2Y-T has a drive strength of 15 pF, which may not be sufficient for high-capacitive loads. In such cases, consider using a buffer or a higher drive strength oscillator to ensure signal integrity.
To minimize EMI, use a shielded enclosure, keep the oscillator away from noise sources, and use a low-pass filter or a ferrite bead to filter out high-frequency noise.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ABM3-11.2896MHZ-D2Y-T Overview

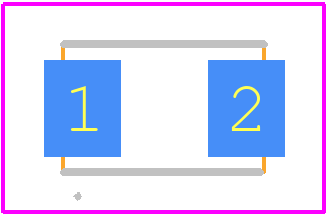

Use the download button to access the ABM3-11.2896MHZ-D2Y-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ABM3-,
or try a keyword search, such as Quartz Crystals
