ABM3-25.000MHZ-D2Y-T footprint, schematic symbol and 3D model by ABRACON

Symbol

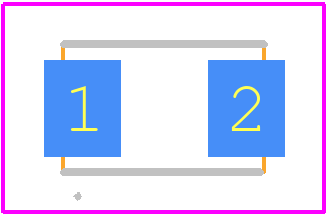

PCB Footprints

3D Models

ABM3-25.000MHZ-D2Y-T Details

Manufacturer Part Number:
ABM3-25.000MHZ-D2Y-T
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, HERMETIC SEALED, MINIATURE, CERAMIC, SMD, 2 PIN
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8541.60.00.60
Factory Lead Time:
10 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
7.05
Additional Feature:
AT-CUT CRYSTAL; TAPE AND REEL
Aging:
5 PPM/FIRST YEAR
Crystal/Resonator Type:
PARALLEL - FUNDAMENTAL
Drive Level:
10 µW
Frequency Stability:
0.003%
Frequency Tolerance (MHz):
20
JESD-609 Code:
e4
Load Capacitance:
18 pF
Mounting Feature:
SURFACE MOUNT
Operating Frequency-Nom:
25 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Packing Method:
TR, 7 INCH
Physical Dimension:
L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)
Series Resistance:
50 Ω
Surface Mount:
YES
Terminal Finish:
Nickel/Gold (Ni/Au)

The recommended storage temperature range for the ABM3-25.000MHZ-D2Y-T is -40°C to +125°C.
Yes, the ABM3-25.000MHZ-D2Y-T is designed to operate in high-vibration environments and can withstand vibrations up to 20G.
The typical power consumption of the ABM3-25.000MHZ-D2Y-T is around 10-20mA, depending on the load capacitance and operating conditions.
Yes, the ABM3-25.000MHZ-D2Y-T is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
The typical start-up time for the ABM3-25.000MHZ-D2Y-T is around 2-5ms, depending on the power supply and load conditions.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ABM3-25.000MHZ-D2Y-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ABM3-, or try a keyword search, such as Quartz Crystals
