The recommended drive level for the ABM3-25.000MHZ-D4H-T is 1-10 μW, as specified in the datasheet. However, it's recommended to consult with Abracon's application engineers to determine the optimal drive level for your specific application.
To ensure reliable startup, make sure to follow the recommended circuit layout and decoupling guidelines provided in the datasheet. Additionally, ensure that the power supply voltage is stable and within the recommended range, and that the oscillator is not subjected to excessive noise or interference.
The typical aging rate of the ABM3-25.000MHZ-D4H-T is ±2 ppm per year, as specified in the datasheet. However, this can vary depending on factors such as operating temperature, humidity, and vibration. Consult with Abracon's application engineers for more information on aging rates and how to minimize their impact on your design.
The ABM3-25.000MHZ-D4H-T is rated for operation up to 85°C, but it's recommended to derate the frequency tolerance and stability specifications at higher temperatures. Consult with Abracon's application engineers to determine the oscillator's performance at your specific operating temperature.
The ABM3-25.000MHZ-D4H-T has built-in ESD protection, but it's still recommended to follow proper ESD handling and storage procedures to prevent damage. Ensure that your PCB design includes adequate ESD protection measures, such as TVS diodes or ESD-protection circuits, to prevent damage from electrostatic discharge.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ABM3-25.000MHZ-D4H-T Overview

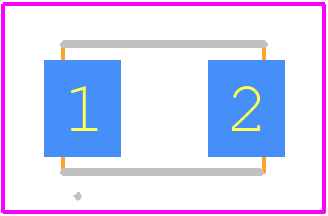

Use the download button to access the ABM3-25.000MHZ-D4H-T schematic symbol, PCB footprint, and 3D model.
