ABM3-40.000MHZ-D2Y-T footprint, schematic symbol and 3D model by ABRACON

Symbol

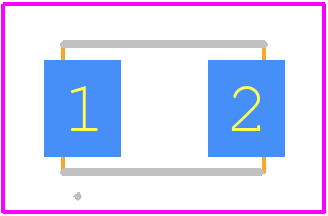

PCB Footprints

3D Models

ABM3-40.000MHZ-D2Y-T Details

The recommended termination impedance is 15pF to 30pF to ensure optimal performance and minimize signal reflections.
To ensure reliable startup, Abracon recommends a power supply ramp-up time of 1ms or slower, and a decoupling capacitor of 0.01uF to 0.1uF between VCC and GND, placed close to the oscillator.
The maximum operating temperature range for the ABM3-40.000MHZ-D2Y-T is -40°C to +85°C. However, it's recommended to operate within -20°C to +70°C for optimal performance and reliability.
Yes, the ABM3-40.000MHZ-D2Y-T is designed to withstand vibrations up to 20G. However, it's recommended to follow proper mounting and soldering techniques to ensure the oscillator is securely attached to the PCB.
The typical current consumption of the ABM3-40.000MHZ-D2Y-T is 10mA to 20mA, depending on the load capacitance and operating frequency.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ABM3-40.000MHZ-D2Y-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ABM3-, or try a keyword search, such as Quartz Crystals
