ABM3-8.000MHZ-D4Y-T footprint, schematic symbol and 3D model by ABRACON

Symbol

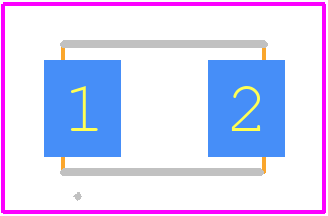

PCB Footprints

3D Models

ABM3-8.000MHZ-D4Y-T Details

Manufacturer Part Number:
ABM3-8.000MHZ-D4Y-T
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, HERMETIC SEALED, MINIATURE, CERAMIC, SMD, 2 PIN
Country Of Origin:
South Korea
HTS Code:
8541.60.00.50
Factory Lead Time:
10 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
7.05
Additional Feature:
AT CUT; TAPE AND REEL
Aging:
5 PPM/FIRST YEAR
Crystal/Resonator Type:
PARALLEL - FUNDAMENTAL
Drive Level:
10 µW
Frequency Stability:
0.003%
Frequency Tolerance (MHz):
30
JESD-609 Code:
e4
Load Capacitance:
18 pF
Mounting Feature:
SURFACE MOUNT
Operating Frequency-Nom:
8 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Physical Dimension:
L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)
Series Resistance:
140 Ω
Surface Mount:
YES
Terminal Finish:
Nickel/Gold (Ni/Au)

Abracon recommends a layout with a solid ground plane, minimal signal trace length, and a 10nF to 22nF decoupling capacitor between VCC and GND, placed as close to the oscillator as possible.
The oscillator is designed to operate up to 125°C, but its frequency stability and accuracy may degrade above 85°C. It's essential to consider thermal management and potential frequency adjustments in high-temperature applications.
Yes, the oscillator's design and packaging are optimized for low EMI emissions. However, additional EMI reduction techniques, such as shielding, filtering, or PCB layout adjustments, may still be necessary to meet specific EMI requirements.
The typical start-up time is around 2-5 ms, but this can vary depending on the specific application, power supply, and PCB layout. It's essential to consider this in system design and ensure that the oscillator has sufficient time to stabilize before the system is operational.
While the oscillator is a high-quality component, it's essential to evaluate its suitability for safety-critical applications on a case-by-case basis. Abracon recommends consulting with their application engineers and performing thorough testing and validation to ensure the oscillator meets the specific safety requirements.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ABM3-8.000MHZ-D4Y-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ABM3-, or try a keyword search, such as Quartz Crystals
