ABM3B-155-12.800MHZ-T footprint, schematic symbol and 3D model by ABRACON

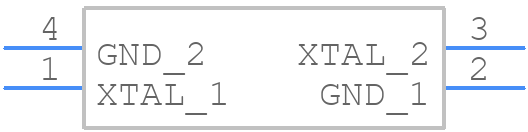

Symbol

PCB Footprints

3D Models

ABM3B-155-12.800MHZ-T Details

The recommended termination impedance is 15pF to 30pF to ensure optimal performance and minimize signal reflections.
To ensure reliable startup, ensure the power supply voltage is stable and within the recommended range, and that the oscillator is properly terminated with a load capacitor.
The maximum operating temperature range is -40°C to +85°C, but it's recommended to operate within -20°C to +70°C for optimal performance and reliability.
Yes, the ABM3B-155-12.800MHZ-T is designed to withstand vibrations up to 20G, but it's recommended to consult with Abracon Corporation for specific vibration requirements and potential customizations.
To minimize EMI, use proper PCB layout techniques, such as separating the oscillator from other components, using a ground plane, and adding EMI filters or shielding if necessary.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ABM3B-155-12.800MHZ-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ABM3B, or try a keyword search, such as Quartz Crystals
