Abracon recommends a symmetrical PCB layout with a solid ground plane, and keeping the oscillator away from high-frequency noise sources. A 4-layer PCB with a dedicated ground plane is ideal.
Ensure the power supply is stable and within the recommended voltage range. Add a 10nF to 100nF decoupling capacitor between VCC and GND, and a 1kΩ to 10kΩ pull-up resistor on the output pin to improve startup reliability.
The ABM3B-29.4912MHZ-N-T is rated for operation from -40°C to +85°C. However, it's recommended to derate the frequency tolerance and stability specifications for operation above +70°C.
The ABM3B-29.4912MHZ-N-T is designed to withstand moderate vibration levels. However, for high-vibration environments, Abracon recommends using a more ruggedized oscillator or taking additional measures to secure the device, such as using a vibration-dampening material or a more robust PCB design.
Check the power supply voltage, ensure the oscillator is properly connected, and verify the load capacitance is within the recommended range. Also, check for any noise or interference on the output pin, and ensure the PCB layout is symmetrical and well-grounded.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ABM3B-29.4912MHZ-N-T Overview

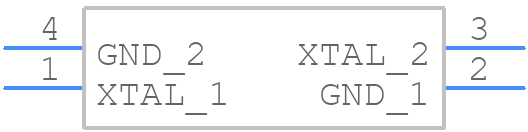

Use the download button to access the ABM3B-29.4912MHZ-N-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ABM3B,
or try a keyword search, such as Quartz Crystals
