Part Image

ABM3C24576MHZD4YT - ABRACON

Description: Crystal 24.576MHz 18pF 4-Pin CSMD T/R

Download ABM3C24576MHZD4YT Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ABM3C24576MHZD4YT model

Email notifications will be applied after download.

Send part feedback

Symbol

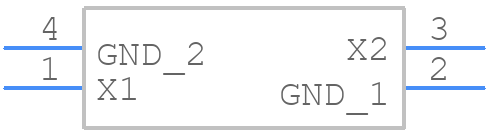

ABM3C24576MHZD4YT - ABRACON - PCB symbol

PCB Footprints

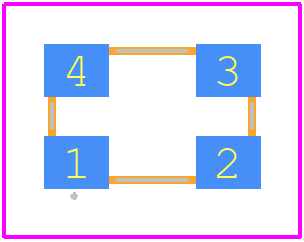

ABM3C24576MHZD4YT - ABRACON PCB footprint - Other - Other - ABM3C

3D Models

ABM3C24576MHZD4YT - ABRACON - 3D model - Other - ABM3C

Datasheet Download Datasheet
Stock & Prices Price & Stock for ABM3C24576MHZD4YT
Part Number ABM3C24576MHZD4YT
Manufacturer ABRACON
Pin Count 4
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - ABM3C
Released Date Apr 14, 2023
Last Modified Date May 2, 2023 9:54 AM UTC
Pinout / Pin List Click Here (Member Only)

ABM3C24576MHZD4YT Details

Manufacturer Part Number:
ABM3C24576MHZD4YT
Manufacturer:
Abracon Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ABM3C24576MHZD4YT Overview

Use the download button to access the ABM3C24576MHZD4YT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ABM3C, or try a keyword search, such as Quartz Crystals
