ABS10A-13 - Diodes Incorporated

Description: Bridge Rectifiers Bridge Rectifier

Download ABS10A-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

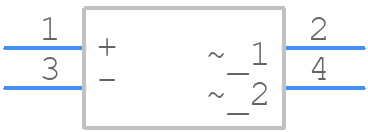

ABS10A-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints

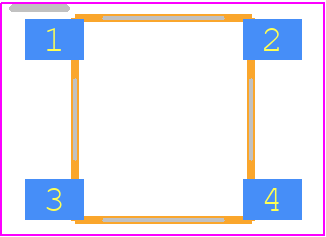

ABS10A-13 - Diodes Incorporated PCB footprint - Other - Other - SOPA-4
click to zoom
3D Models
ABS10A-13 - Diodes Incorporated - 3D model - Other - SOPA-4
click to zoom

ABS10A-13 Details

  • Manufacturer Part Number:

    ABS10A-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Breakdown Voltage-Min:

    1000 V

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • JESD-30 Code:

    R-PDSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    35 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Rep Pk Reverse Voltage-Max:

    1000 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

ABS10A-13 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for ABS10A-13 is -40°C to 125°C.
  • To ensure reliability, it's essential to follow the recommended derating curves for voltage and current, and to consider the device's thermal resistance and power dissipation.
  • The maximum allowable power dissipation for ABS10A-13 is 1.25W, and it's essential to ensure the device operates within this limit to prevent overheating and damage.
  • While ABS10A-13 is suitable for high-frequency applications, it's essential to consider the device's transition frequency (ft) and ensure the operating frequency is below ft to maintain stability and performance.
  • To prevent ESD damage, it's essential to follow proper handling and storage procedures, use ESD-protective packaging, and consider adding external ESD protection devices if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ABS10A-13 Overview

Use the download button to access the ABS10A-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ABS10, or try a keyword search, such as Bridge Rectifier Diodes
