A good PCB layout for ABS10_HF involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 10uF capacitor between the VIN and GND pins to filter out noise.
To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) value. A 10uF to 22uF ceramic capacitor with an ESR of less than 100mΩ is recommended. Additionally, the output voltage can be further stabilized by adding a 1uF to 10uF capacitor in parallel with the output capacitor.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device. Exceeding the maximum input voltage can lead to reduced performance, increased power consumption, or even device failure.
ABS10_HF is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's essential to consider the device's power dissipation, thermal resistance, and junction temperature when operating in high-temperature environments. Proper heat sinking and thermal management are crucial to ensure reliable operation.
To troubleshoot issues with ABS10_HF, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to monitor the input and output waveforms, and ensure that the output capacitor is suitable for the application. If the issue persists, consult the datasheet and application notes or contact Diodes Incorporated's technical support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ABS10_HF Overview

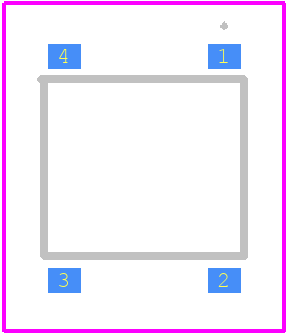

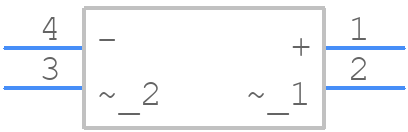

Use the download button to access the ABS10_HF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ABS10,
or try a keyword search, such as Bridge Rectifier Diodes
