AC3MAH4-SW-B - Amphenol

Description: XLR Connectors 3 Pole Male XLR W/Integral Switch

Download AC3MAH4-SW-B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AC3MAH4-SW-B - Amphenol - PCB symbol
click to zoom
PCB Footprints

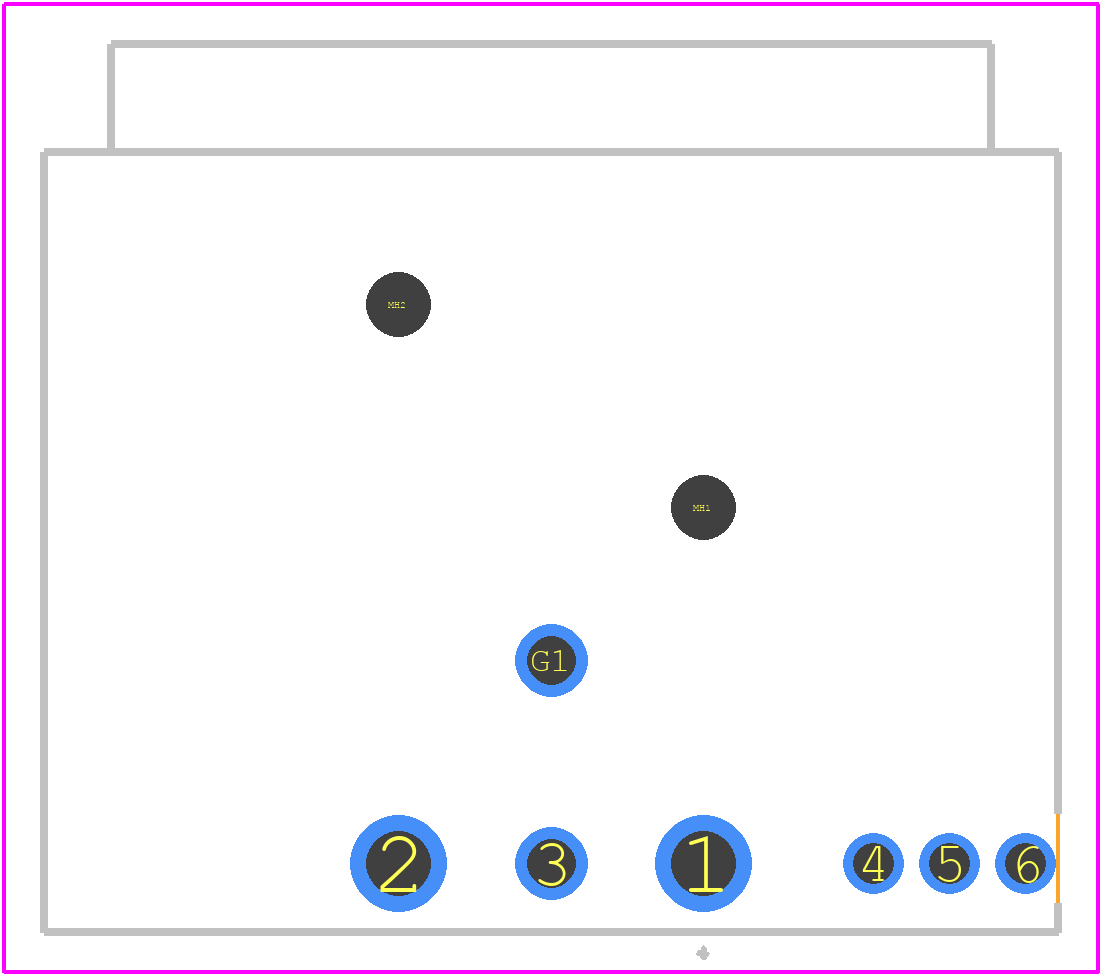

AC3MAH4-SW-B - Amphenol PCB footprint - Other - Other - AC3MAH4-SW-B-4
click to zoom
3D Models
AC3MAH4-SW-B - Amphenol - 3D model - Other - AC3MAH4-SW-B-4
click to zoom

AC3MAH4-SW-B Details

  • Manufacturer Part Number:

    AC3MAH4-SW-B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    0

  • Connector Type:

    XLR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

AC3MAH4-SW-B Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the connector is designed for harsh environments and can withstand outdoor use, but it's essential to follow proper installation and sealing procedures to ensure IP67 rating.
  • Yes, the connector is designed to withstand high-vibration environments, but it's recommended to follow Amphenol's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
  • The maximum operating temperature range for the AC3MAH4-SW-B connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the AC3MAH4-SW-B connector is part of the Amphenol's Mini-AC series and is compatible with other connectors in the same series, but it's essential to verify compatibility before mating different connectors.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AC3MAH4-SW-B Overview

Use the download button to access the AC3MAH4-SW-B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AC3MA, or try a keyword search, such as Audio/RCA Connectors
