AC3MBH-AU-B footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

PCB Footprints

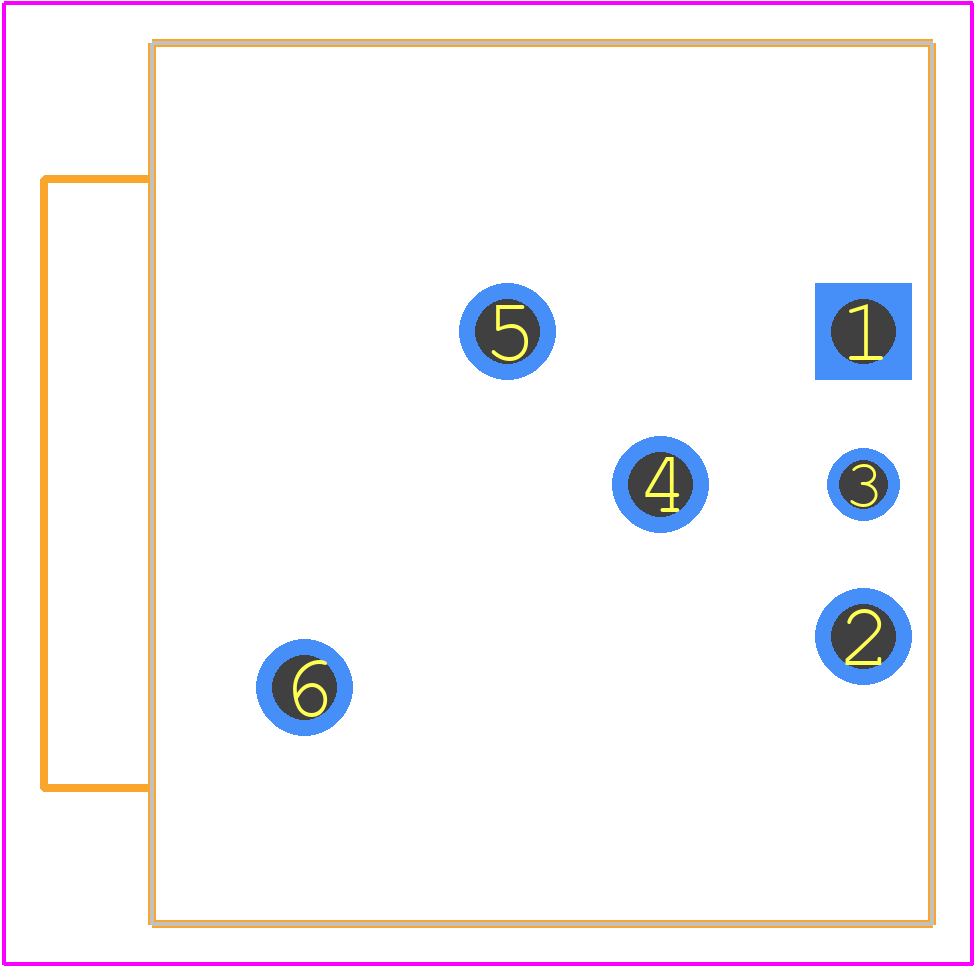

AC3MBH-AU-B - Amphenol PCB footprint - Other - Other - AC3MBH-AU-B-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AC3MBH-AU-B
Part Number AC3MBH-AU-B
Manufacturer Amphenol
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - AC3MBH-AU-B-4
Released Date Jul 13, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AC3MBH-AU-B Details

Manufacturer Part Number:
AC3MBH-AU-B
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Amphenol Corporation
YTEOL:
0
Board Mounting Option:
SOLDER HOLDING POSTS
Body Breadth:
0.996 inch
Body Depth:
0.874 inch
Body Length:
0.996 inch
Body/Shell Style:
RECEPTACLE
Configuration:
1X1 HORIZONTAL
Connector Type:
XLR
Contact Finish Mating:
GOLD (3) OVER NICKEL (30)
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
BRASS
Contact Style:
RND PIN-SKT
JESD-609 Code:
e4
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Number Of Connectors:
ONE
Number of Poles:
3
Number of Ports:
1
Option:
GENERAL PURPOSE
Polarization Key:
POLARIZED KEY
Rated Current (Signal):
6 A
Terminal Length:
0.136 inch
Termination Type:
SOLDER

AC3MBH-AU-B Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the AC3MBH-AU-B connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, aerospace, and industrial control systems.
Yes, the AC3MBH-AU-B connector is designed for outdoor use and can operate in harsh environmental conditions. It has a IP67 rating, which means it can withstand exposure to dust, water, and extreme temperatures.
The AC3MBH-AU-B connector can accommodate wire sizes up to 2.5 mm² (14 AWG). It's essential to use wires within this size range to ensure reliable connections and prevent damage to the connector.
Yes, the AC3MBH-AU-B connector is designed to operate in high-temperature environments. It has a temperature range of -40°C to +125°C, making it suitable for use in applications such as automotive, aerospace, and industrial control systems.
