ACH-14.31818MHZ-EK footprint, schematic symbol and 3D model by ABRACON

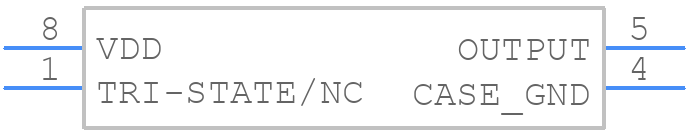

Symbol

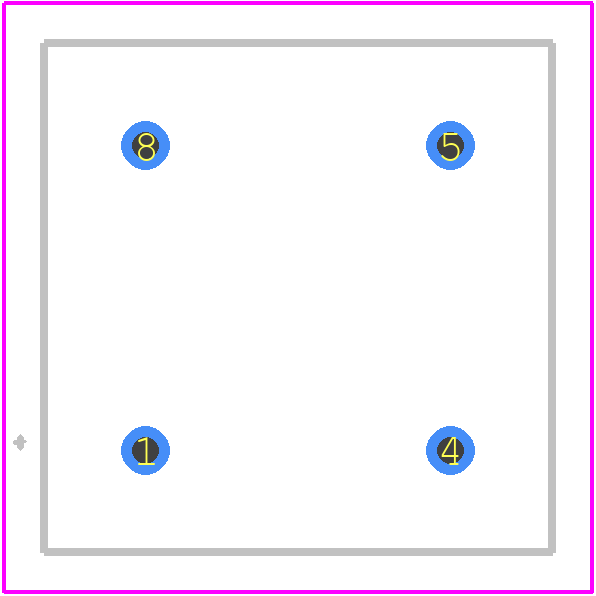

PCB Footprints

3D Models

ACH-14.31818MHZ-EK Details

Abracon recommends a layout with a ground plane underneath the oscillator, and keeping the traces as short as possible to minimize noise and radiation. A 4-layer PCB with a dedicated ground plane is ideal.
To ensure reliable startup, Abracon recommends a power-up ramp time of at least 1ms, and a power supply voltage that meets the specified operating range. Additionally, decoupling capacitors should be placed close to the oscillator to filter out noise.
The ACH-14.31818MHZ-EK oscillator is rated for operation from -40°C to +85°C. However, it's essential to note that the frequency tolerance and stability may vary outside the recommended operating temperature range.
No, the ACH-14.31818MHZ-EK oscillator is designed to operate at a specific frequency of 14.31818 MHz and should not be used in designs that require a different frequency. Using it at a different frequency may result in unreliable operation or damage to the device.
Abracon recommends storing the ACH-14.31818MHZ-EK oscillator in a dry, cool place, away from direct sunlight and moisture. The storage temperature should be between -40°C and +85°C, and the relative humidity should be below 60%.
