The recommended storage condition for ACHL-48.000MHZ-EK-G is to store it in a dry, cool place, away from direct sunlight, and in its original packaging to prevent damage and degradation.
While ACHL-48.000MHZ-EK-G is rated for operation up to 85°C, it's essential to consider the derating curve and ensure that the crystal's frequency tolerance and stability are within acceptable limits for your specific application.
Handle ACHL-48.000MHZ-EK-G by the edges, avoid touching the crystal surface, and use a soft, dry brush or a vacuum pickup tool to prevent static damage. Mount the crystal using a suitable adhesive or bonding method, ensuring minimal stress and avoiding excessive pressure.
The typical lead time for ACHL-48.000MHZ-EK-G can vary depending on the quantity, availability, and manufacturing schedule. It's best to check with Abracon Corporation or an authorized distributor for the most up-to-date lead time information.
Yes, ACHL-48.000MHZ-EK-G is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental safety and sustainability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACHL-48.000MHZ-EK-G Overview

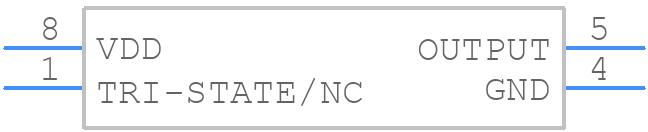

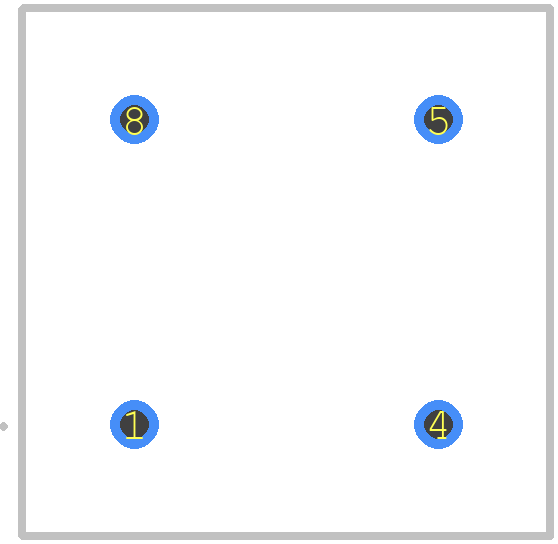

Use the download button to access the ACHL-48.000MHZ-EK-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACHL-,
or try a keyword search, such as XO
