ACJ1212P - Panasonic

Description: Automotive Relay SPDT (1 Form C) 12VDC Coil Through Hole 20A,-40°C ~ 85°C

Download ACJ1212P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

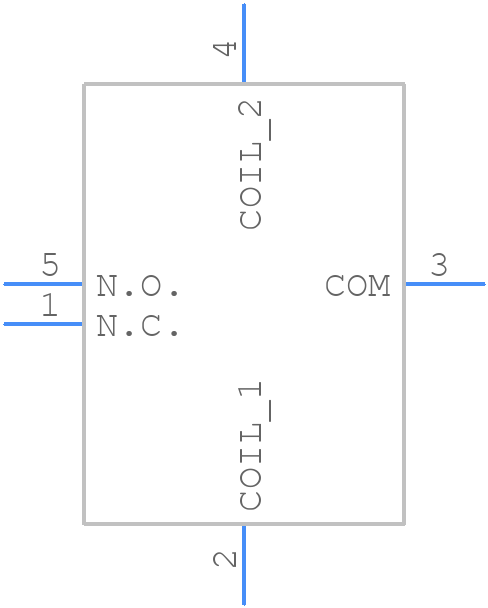

ACJ1212P - Panasonic - PCB symbol
click to zoom
PCB Footprints
ACJ1212P - Panasonic PCB footprint - Other - Other - ACJ1212P-2
click to zoom
3D Models
ACJ1212P - Panasonic - 3D model - Other - ACJ1212P-2
click to zoom

ACJ1212P Details

  • Manufacturer Part Number:

    ACJ1212P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.05

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6.75

  • Body Breadth:

    7.2 mm

  • Body Height:

    13.8 mm

  • Body Length or Diameter:

    12.2 mm

  • Coil Current(DC)-Max:

    0.053 A

  • Coil Operate Voltage(DC):

    7.2 V

  • Coil Power:

    640 mW

  • Coil Release Voltage(DC):

    1 V

  • Coil Resistance:

    225 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    10 A

  • Contact (DC) Max Rating R Load:

    10A@14VDC

  • Contact Voltage(DC)-Max:

    14 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    12.2mm x 7.2mm x 13.8mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
