ACJ5112 - Panasonic

Description: 1-Form-C x 2, single side stable, Twin

Download ACJ5112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

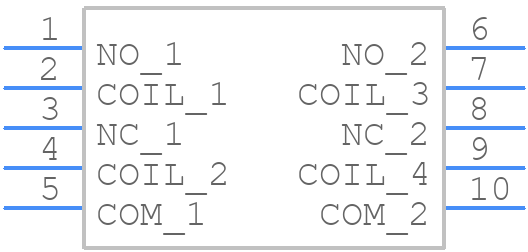

ACJ5112 - Panasonic - PCB symbol
click to zoom
PCB Footprints

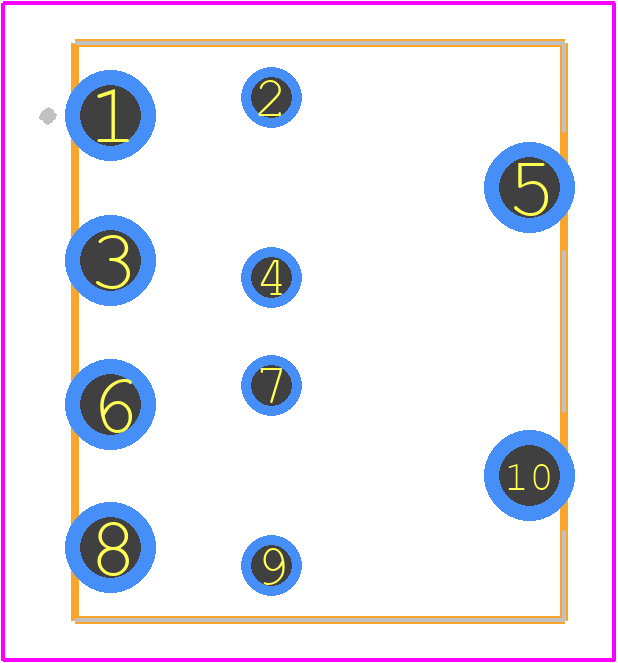

ACJ5112 - Panasonic PCB footprint - Other - Other - ACJ5112
click to zoom
3D Models
ACJ5112 - Panasonic - 3D model - Other - ACJ5112
click to zoom

ACJ5112 Details

  • Manufacturer Part Number:

    ACJ5112

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.05

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Body Breadth:

    12.2 mm

  • Body Height:

    13.5 mm

  • Body Length or Diameter:

    14.4 mm

  • Coil Current(DC)-Max:

    0.067 A

  • Coil Operate Voltage(DC):

    6.5 V

  • Coil Power:

    800 mW

  • Coil Release Voltage(DC):

    0.8 V

  • Coil Resistance:

    180 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    10 A

  • Contact (DC) Max Rating R Load:

    10A@14VDC

  • Contact Voltage(DC)-Max:

    14 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    14.4mm x 12.2mm x 13.5mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

ACJ5112 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and electromagnetic interference (EMI).
  • Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate in high-temperature environments. Monitor the device's temperature using a thermocouple or thermal sensor.
  • Exceeding the maximum ratings can lead to reduced lifespan, permanent damage, or even catastrophic failure. Ensure that the device operates within its specified voltage, current, and power dissipation limits.
  • Use a systematic approach to troubleshoot issues. Check the power supply, input/output connections, and PCB layout. Use oscilloscopes and logic analyzers to debug signal integrity issues. Consult the datasheet and application notes for guidance.
  • Yes, the ACJ5112 is susceptible to EMI/EMC. Use shielding, filtering, and grounding techniques to minimize electromagnetic interference. Ensure that the PCB layout and component placement minimize radiation and susceptibility.
