ACNH3212 - Panasonic

Description: 1-Form-A, single side stable, 6,5V

Download ACNH3212 Model

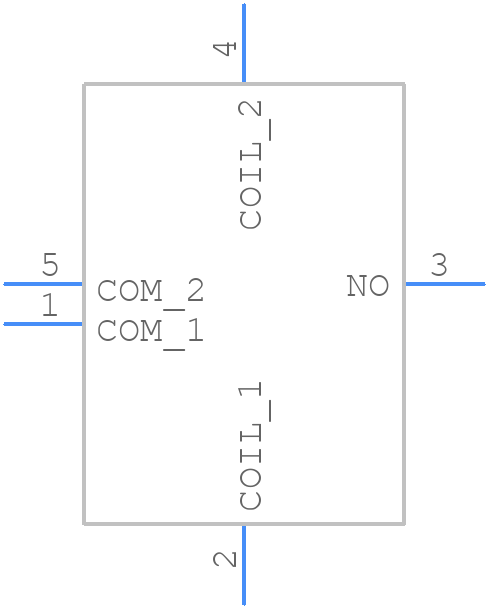

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

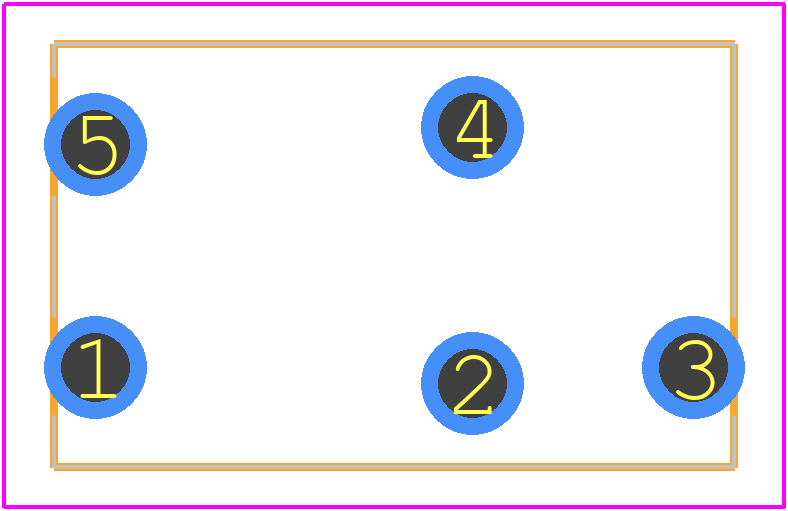

PCB Footprints
ACNH3212 - Panasonic PCB footprint - Other - Other - ACNH3212-4
click to zoom
3D Models
ACNH3212 - Panasonic  - 3D model - Other - ACNH3212-4
click to zoom

ACNH3212 Details

  • Manufacturer Part Number:

    ACNH3212

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.50

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6.25

  • Body Breadth:

    10.6 mm

  • Body Height:

    18.3 mm

  • Body Length or Diameter:

    17 mm

  • Coil Current(DC)-Max:

    0.038 A

  • Coil Operate Voltage(DC):

    6.5 V

  • Coil Power:

    450 mW

  • Coil Release Voltage(DC):

    1 V

  • Coil Resistance:

    320 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    30 A

  • Contact (DC) Max Rating R Load:

    30A@14VDC

  • Contact Voltage(DC)-Max:

    14 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    100000 Cycle(s)

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    17mm x 10.6mm x 18.3mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Terminal Finish:

    Silver (Ag)

  • Termination Type:

    SOLDER
