ACNM1112 - Panasonic

Description: General Purpose Relays 1 FORM C 12VDC PCB

Download ACNM1112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ACNM1112 - Panasonic - PCB symbol
click to zoom
PCB Footprints

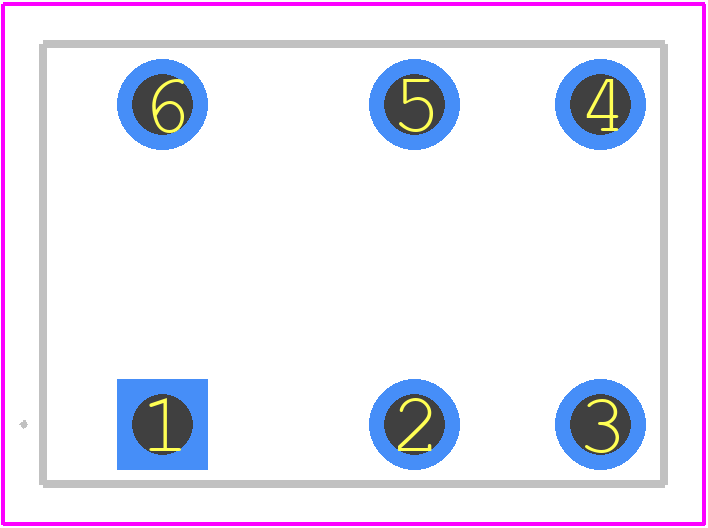

ACNM1112 - Panasonic PCB footprint - Other - Other - ACNM1112-2
click to zoom
3D Models
ACNM1112 - Panasonic - 3D model - Other - ACNM1112-2
click to zoom

ACNM1112 Details

  • Manufacturer Part Number:

    ACNM1112

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.50

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Body Breadth:

    11 mm

  • Body Height:

    14.4 mm

  • Body Length or Diameter:

    15.5 mm

  • Coil Current(DC)-Max:

    0.053 A

  • Coil Operate Voltage(DC):

    7.2 V

  • Coil Power:

    640 mW

  • Coil Release Voltage(DC):

    1 V

  • Coil Resistance:

    225 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    30 A

  • Contact (DC) Max Rating R Load:

    30A@14VDC

  • Contact Voltage(DC)-Max:

    14 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    15.5mm x 11mm x 14.4mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

ACNM1112 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central grounding point and minimal track lengths is recommended to reduce electromagnetic interference (EMI) and ensure optimal performance.
  • Use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or heat, which can damage the component.
  • The ACNM1112 can operate safely within a temperature range of -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
  • Yes, the ACNM1112 is designed to withstand vibrations up to 10G, but it's recommended to secure the component to the PCB using a suitable adhesive or mechanical fastening to prevent damage.
  • Store the ACNM1112 in its original packaging or a similar ESD-protective package, and avoid exposing it to direct sunlight, moisture, or extreme temperatures during shipping.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACNM1112 Overview

Use the download button to access the ACNM1112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACNM1, or try a keyword search, such as Power/Signal Relays
