ACNV2601-500E - Avago Technologies

Description: Optocoupler Logic-Out Open Collector DC-IN 1-CH 10-Pin DIP SMD T/R - Tape and Reel

Download ACNV2601-500E Model

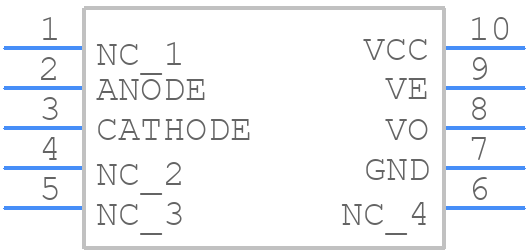

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ACNV2601-500E - Avago Technologies PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - ACNV2601-000E
click to zoom
3D Models
ACNV2601-500E - Avago Technologies  - 3D model - Dual-In-Line Packages - ACNV2601-000E
click to zoom

ACNV2601-500E Details

  • Manufacturer Part Number:

    ACNV2601-500E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.500 INCH, ROHS COMPLIANT, PLASTIC, WIDE BODY, SURFACE MOUNT, DIP-10

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Additional Feature:

    OPEN COLLECTOR, TTL COMPATIBLE, UL RECOGNIZED, VDE APPROVED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.085 W

  • Response Time-Nom:

    1.2e-7 ns

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ACNV2601-500E Frequently Asked Questions (FAQs)

  • Broadcom recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
  • To minimize power consumption, use the lowest possible clock frequency, disable unused features, and adjust the voltage regulator module (VRM) to the lowest voltage required for the application.
  • The internal voltage regulators should be set to the recommended values in the datasheet. For VDD_CORE, set to 1.2V, and for VDD_IO, set to 1.8V or 3.3V depending on the application.
  • Use a logic analyzer or oscilloscope to monitor the signals, check the power supply and clock signals, and verify the PCB layout and thermal management. Consult the datasheet and Broadcom's application notes for troubleshooting guides.
  • The device has a maximum junction temperature of 125°C. De-rate the device's power consumption and clock frequency according to the thermal derating curve provided in the datasheet.
