ACNW3130-300E - Avago Technologies

Description: Broadcom ACNW3130-300E DC Input Phototransistor Output Optocoupler, Surface Mount, 8-Pin DIP

Download ACNW3130-300E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

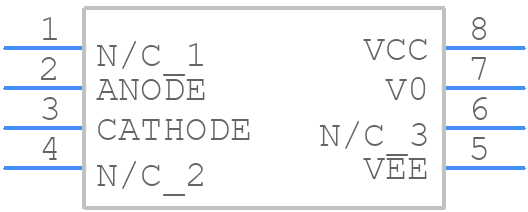

ACNW3130-300E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
ACNW3130-300E - Avago Technologies PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - ACNW3130-300E
click to zoom
3D Models
ACNW3130-300E - Avago Technologies - 3D model - Dual-In-Line Packages - ACNW3130-300E
click to zoom

ACNW3130-300E Details

  • Manufacturer Part Number:

    ACNW3130-300E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-8

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Configuration:

    COMPLEX

  • Forward Current-Max:

    0.016 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.25 W

  • Response Time-Nom:

    5e-7 ns

  • Supply Voltage-Min:

    15 V

  • Supply Voltage-Nom:

    30 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

ACNW3130-300E Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ACNW3130-300E is -40°C to 85°C.
  • For optimal performance, configure the ACNW3130-300E using the Broadcom-provided software development kit (SDK) and follow the recommended settings for the specific application.
  • The maximum transmit power of the ACNW3130-300E is 23 dBm (200 mW) for 2.4 GHz and 20 dBm (100 mW) for 5 GHz.
  • Yes, the ACNW3130-300E supports Wi-Fi 6 (802.11ax) and is backward compatible with previous Wi-Fi standards.
  • The power consumption of the ACNW3130-300E in sleep mode is typically around 5-10 mW, depending on the specific configuration and application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACNW3130-300E Overview

Use the download button to access the ACNW3130-300E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACNW3, or try a keyword search, such as Optocoupler
