ACPL-021L-000E - Avago Technologies

Description: Broadcom ACPL-021L-000E DC Input CMOS Output Optocoupler, Surface Mount, 8-Pin SOIC

Download ACPL-021L-000E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

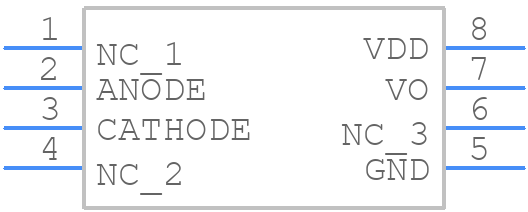

ACPL-021L-000E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
ACPL-021L-000E - Avago Technologies PCB footprint - Small Outline Packages - Small Outline Packages - SO8
click to zoom
3D Models
ACPL-021L-000E - Avago Technologies - 3D model - Small Outline Packages - SO8
click to zoom

ACPL-021L-000E Details

  • Manufacturer Part Number:

    ACPL-021L-000E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    8

  • Additional Feature:

    CMOS COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    5 MBps

  • Forward Current-Max:

    0.008 A

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.01 A

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    2.5e-7 ns

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

ACPL-021L-000E Frequently Asked Questions (FAQs)

  • A good PCB layout for the ACPL-021L-000E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device within its recommended operating temperature range.
  • The ACPL-021L-000E has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, and ESD-protected packaging.
  • No, the ACPL-021L-000E is an isolation amplifier, and it's not recommended for use in non-isolated applications. Using it in a non-isolated application may compromise the safety and reliability of the system.
  • The maximum allowable voltage imbalance between the input and output circuits of the ACPL-021L-000E is ±1 kV. Exceeding this limit may compromise the isolation and reliability of the device.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ACPL-021L-000E Overview

Use the download button to access the ACPL-021L-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-, or try a keyword search, such as Optocoupler
