ACPL-021L-500E - Avago Technologies

Description: BROADCOM LIMITED - ACPL-021L-500E - OPTOCOUPLER, L POWER, DIG. CMOS. 0.5KV

Download ACPL-021L-500E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

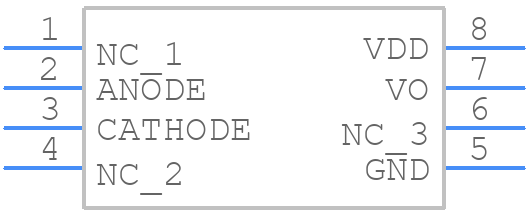

ACPL-021L-500E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
ACPL-021L-500E - Avago Technologies PCB footprint - Small Outline Packages - Small Outline Packages - so-8package
click to zoom
3D Models
ACPL-021L-500E - Avago Technologies - 3D model - Small Outline Packages - so-8package
click to zoom

ACPL-021L-500E Details

  • Manufacturer Part Number:

    ACPL-021L-500E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    8

  • Additional Feature:

    CMOS COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    5 MBps

  • Forward Current-Max:

    0.008 A

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.01 A

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    2.5e-7 ns

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

ACPL-021L-500E Frequently Asked Questions (FAQs)

  • A good PCB layout for the ACPL-021L-500E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input and output connections.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range of -40°C to 100°C, and to provide adequate heat sinking and thermal management. Additionally, consider using a thermally conductive material for the PCB and ensuring good airflow around the device.
  • The maximum allowable voltage imbalance between the input and output of the ACPL-021L-500E is ±1 kV. Exceeding this limit can cause damage to the device.
  • The ACPL-021L-500E is designed for low-frequency applications up to 100 kHz. While it may work at higher frequencies, its performance and reliability may degrade. For high-frequency applications, consider using a different isolator or consulting with a Broadcom engineer.
  • To troubleshoot issues with the ACPL-021L-500E, start by checking the input and output voltage levels, ensuring they are within the recommended range. Verify that the device is properly powered and that the input and output circuits are properly connected. If issues persist, consult the datasheet and application notes or contact Broadcom support.
