A good PCB layout for the ACPL-024L-000E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device within its recommended operating temperature range.
The ACPL-024L-000E has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. It's recommended to use an ESD wrist strap or mat, and to handle the device by the body rather than the pins.
The ACPL-024L-000E is not certified for use in safety-critical applications, such as in medical devices or automotive systems. It's essential to consult with a qualified safety expert and follow relevant safety standards and regulations.
To troubleshoot issues with the ACPL-024L-000E, start by checking the power supply voltage, signal integrity, and PCB layout. Use an oscilloscope to verify the input and output signals, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ACPL-024L-000E Overview

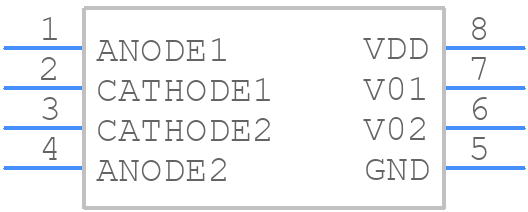

Use the download button to access the ACPL-024L-000E schematic symbol, PCB footprint, and 3D model.
