Broadcom recommends a PCB layout with a solid ground plane, minimal track length, and a 50-ohm transmission line impedance to ensure optimal performance and minimize signal distortion.
To ensure reliable operation across the entire temperature range, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal hotspots.
Although the datasheet specifies a recommended operating voltage range of 4.5V to 5.5V, the absolute maximum voltage on the VCC pin should not exceed 6.5V to prevent damage to the device.
While the ACPL-024L-060E is designed to operate in a variety of environments, it is not recommended for use in high-humidity environments (>80% RH) without proper protection, such as conformal coating or hermetic sealing, to prevent moisture-related failures.
The recommended input signal amplitude is 10-20 mA, and the frequency range is up to 100 MHz. However, the device can operate with input signals as low as 5 mA and frequencies up to 150 MHz, but with reduced performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-024L-060E Overview

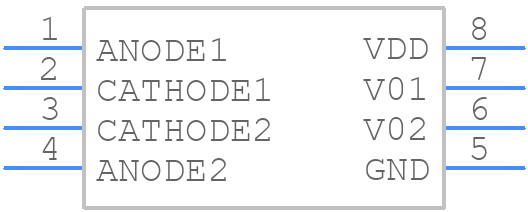

Use the download button to access the ACPL-024L-060E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Optocoupler
