ACPL-054L-500E - Avago Technologies

Description: BROADCOM - ACPL-054L-500E - Optocoupler, 2 Channel, SOIC, 8 Pins, 20 mA, 3.75 kV, 93 %

Download ACPL-054L-500E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

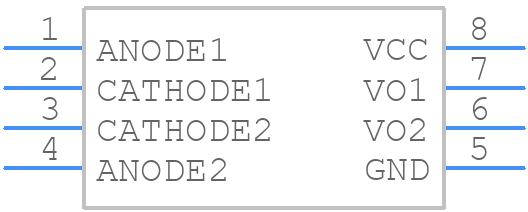

ACPL-054L-500E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
ACPL-054L-500E - Avago Technologies PCB footprint - Small Outline Packages - Small Outline Packages - SO-8_2025
click to zoom
3D Models
ACPL-054L-500E - Avago Technologies - 3D model - Small Outline Packages - SO-8_2025
click to zoom

ACPL-054L-500E Details

  • Manufacturer Part Number:

    ACPL-054L-500E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SOP-8

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    8

  • Additional Feature:

    OPEN COLLECTOR, TTL COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Min:

    53%

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    1.8 V

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.045 W

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

ACPL-054L-500E Frequently Asked Questions (FAQs)

  • A good PCB layout for the ACPL-054L-500E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input and output connections.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device within its recommended operating temperature range.
  • The ACPL-054L-500E has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and installation to prevent damage to the device.
  • No, the ACPL-054L-500E is an isolation amplifier, and it's designed to provide electrical isolation between the input and output circuits. Using it in a non-isolated application would defeat its purpose and may compromise safety and performance.
  • The maximum allowable common-mode voltage for the ACPL-054L-500E is ±2500 Vpeak, which is the maximum voltage that can be applied between the input and output circuits without damaging the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACPL-054L-500E Overview

Use the download button to access the ACPL-054L-500E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-, or try a keyword search, such as Optocoupler
