ACPL-227-50BE footprint, schematic symbol and 3D model by Avago Technologies

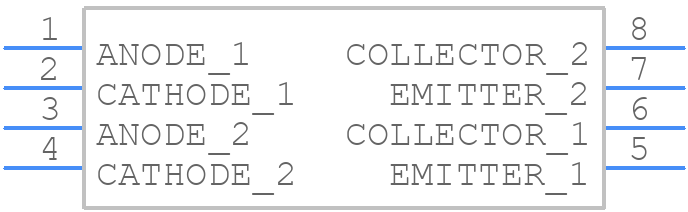

Symbol

PCB Footprints

3D Models

ACPL-227-50BE Details

A good PCB layout for the ACPL-227-50BE involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the traces between the optocoupler and the surrounding components.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the component away from heat sources.
The maximum allowable voltage for the ACPL-227-50BE is 5.5V, as specified in the datasheet. Exceeding this voltage can damage the device.
To handle ESD protection for the ACPL-227-50BE, it's recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the components in anti-static packaging.
The typical propagation delay for the ACPL-227-50BE is around 10-15 μs, although this can vary depending on the specific application and operating conditions.

Community Provided

System Verified

Community Approved

Use the download button to access the ACPL-227-50BE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-, or try a keyword search, such as Optocoupler
