A good PCB layout for the ACPL-227-560E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device within its recommended operating temperature range.
The ACPL-227-560E has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap or mat, and storing the devices in anti-static packaging.
While the ACPL-227-560E is designed for isolated applications, it can be used in non-isolated applications with proper circuit design and layout. However, this may compromise the device's isolation performance and reliability.
To troubleshoot issues with the ACPL-227-560E, start by checking the input and output voltage levels, ensuring proper power supply decoupling, and verifying the PCB layout and component selection. You can also use oscilloscope measurements to identify signal integrity issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-227-560E Overview

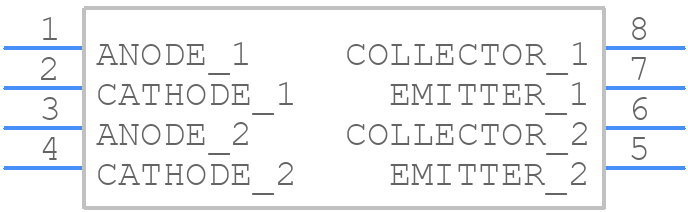

Use the download button to access the ACPL-227-560E schematic symbol, PCB footprint, and 3D model.
