ACPL-312T-300E - Avago Technologies

Description: 2.5A Gate Driver Optical Coupling 3750Vrms 1 Channel 8-DIP Gull Wing

Download ACPL-312T-300E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

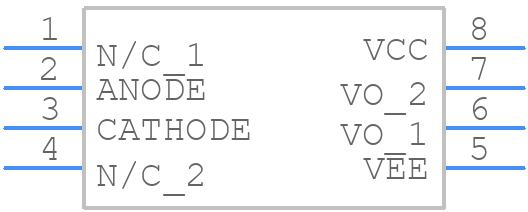

ACPL-312T-300E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
ACPL-312T-300E - Avago Technologies PCB footprint - Other - Other - 8-SMD, Gull Wing_2024
click to zoom

ACPL-312T-300E Details

  • Manufacturer Part Number:

    ACPL-312T-300E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SURFACE MOUNT, DIP-8

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.016 A

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.4 W

  • Response Time-Nom:

    5e-7 ns

  • Supply Voltage-Min:

    15 V

  • Supply Voltage-Nom:

    30 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ACPL-312T-300E Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ACPL-312T-300E involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • To ensure reliable operation of the ACPL-312T-300E in high-temperature environments, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet, and to ensure good thermal management on the PCB.
  • The maximum allowable voltage across the input pins of the ACPL-312T-300E is 5.5V, exceeding which may cause damage to the device.
  • While the ACPL-312T-300E is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 25 kHz with proper PCB layout and signal termination. However, the device's performance may degrade at higher frequencies.
  • To troubleshoot issues with the ACPL-312T-300E, check the input and output voltage levels, ensure proper PCB layout and signal termination, and verify that the device is operated within its recommended operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACPL-312T-300E Overview

Use the download button to access the ACPL-312T-300E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-, or try a keyword search, such as Optocoupler
