A good PCB layout for the ACPL-331J-000E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device.
The maximum allowable voltage for the ACPL-331J-000E is 5.5V. Exceeding this voltage can cause permanent damage to the device.
To troubleshoot issues with the ACPL-331J-000E, start by checking the power supply voltage, ensuring that it's within the recommended range. Then, verify that the input signals are within the specified range and that the output is not overloaded. If the issue persists, check for any signs of physical damage or overheating.
The ACPL-331J-000E is not certified for use in safety-critical applications. If you need a safety-certified isolator, consider using a device that meets the relevant safety standards, such as IEC 61508 or UL 1577.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-331J-000E Overview

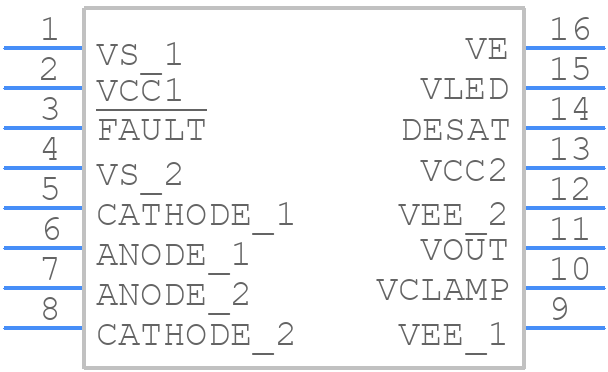

Use the download button to access the ACPL-331J-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Optocoupler
