The recommended operating temperature range for the ACPL-34JT-000E is -40°C to 100°C.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current handling capability and to provide adequate heat sinking.
The maximum allowable voltage for the ACPL-34JT-000E is 5300 Vrms for 1 minute, as per the UL 1577 standard.
The correct current-limiting resistor value can be calculated using the formula: R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage drop of the LED, and If is the desired forward current.
The typical propagation delay time for the ACPL-34JT-000E is around 10-15 μs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-34JT-000E Overview

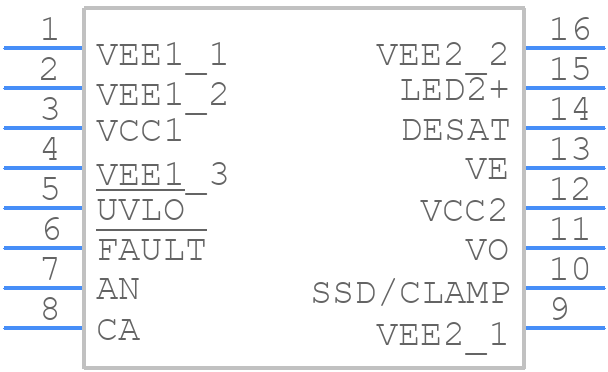

Use the download button to access the ACPL-34JT-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Optocoupler
