A good PCB layout for the ACPL-38JT-500E involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, ensure that the ACPL-38JT-500E is operated within its recommended temperature range (-40°C to 100°C), and consider using thermal management techniques such as heat sinks or thermal interfaces.
The ACPL-38JT-500E has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device, such as using an ESD wrist strap or mat, and storing the device in an anti-static bag.
The ACPL-38JT-500E is a general-purpose optocoupler and is not certified for use in safety-critical applications. If you need a safety-certified optocoupler, consider using a device that meets the relevant safety standards, such as IEC 60747-5-5 or UL 1577.
To troubleshoot issues with the ACPL-38JT-500E, check the input and output voltages, ensure proper PCB layout and routing, and verify that the device is operated within its recommended specifications. You can also consult the datasheet and application notes for troubleshooting guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-38JT-500E Overview

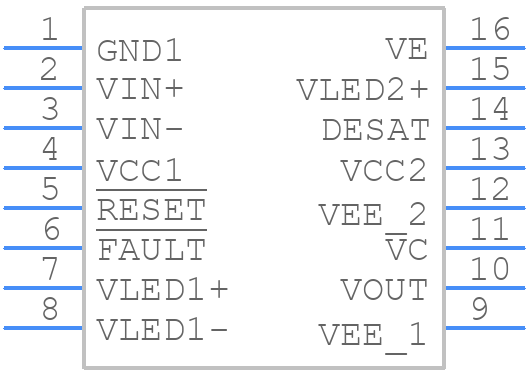

Use the download button to access the ACPL-38JT-500E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Other Interface ICs
