A good PCB layout for the ACPL-772L-000E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device within its recommended operating temperature range.
The ACPL-772L-000E has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, and ESD-protected packaging.
The ACPL-772L-000E is not certified for use in safety-critical applications. If you need a safety-certified isolator, you should consider a different part number that meets the required safety standards, such as IEC 61508 or UL 1577.
To troubleshoot issues with the ACPL-772L-000E, start by checking the power supply voltage, input current, and output voltage. Verify that the device is operated within its recommended specifications and that the PCB layout is correct. You can also use oscilloscopes and logic analyzers to debug the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-772L-000E Overview

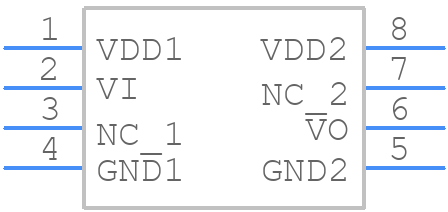

Use the download button to access the ACPL-772L-000E schematic symbol, PCB footprint, and 3D model.
