A good PCB layout for the ACPL-785J-000E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range of -40°C to 125°C, and to ensure good thermal management by providing adequate heat sinking and airflow. Additionally, consider using a thermally conductive material for the PCB and ensuring that the device is not exposed to excessive moisture or humidity.
The ACPL-785J-000E has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap or mat, and ensuring that all equipment and tools are properly grounded.
The ACPL-785J-000E is rated for up to 5.5 kVrms isolation voltage, making it suitable for high-voltage applications. However, it's essential to ensure that the device is properly isolated from the high-voltage circuitry and that the recommended operating conditions are not exceeded.
To troubleshoot issues with the ACPL-785J-000E, start by checking the power supply voltage, ensuring that it's within the recommended range. Then, verify that the input and output circuits are properly connected and that there are no signs of physical damage or overheating. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-785J-000E Overview

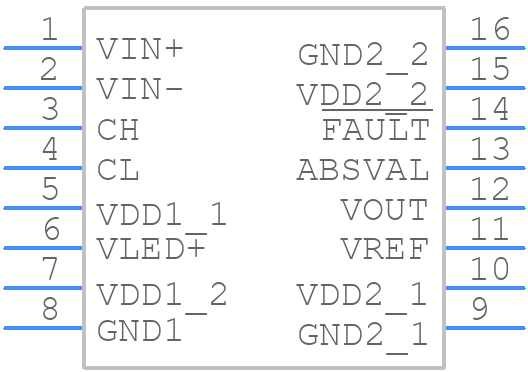

Use the download button to access the ACPL-785J-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Other Signal Circuits
