Broadcom recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke and a shielded cable for the input signal to minimize noise and EMI.
The ACPL-824-300E requires a bias voltage of 5V ± 10% on the VCC pin, and a bias current of 10mA to 20mA on the IBIAS pin. Ensure that the bias voltage and current are within the recommended range to ensure optimal performance.
The ACPL-824-300E has an operating temperature range of -40°C to 100°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
To troubleshoot issues with the ACPL-824-300E, check the input and output signals using an oscilloscope, and verify that the bias voltage and current are within the recommended range. Also, check for any signs of physical damage or overheating. If the issue persists, contact Broadcom support for further assistance.
Yes, the ACPL-824-300E is compatible with other Broadcom isolation products, such as the ACPL-K and ACPL-W series. However, ensure that the specific product is compatible with the ACPL-824-300E by checking the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-824-300E Overview

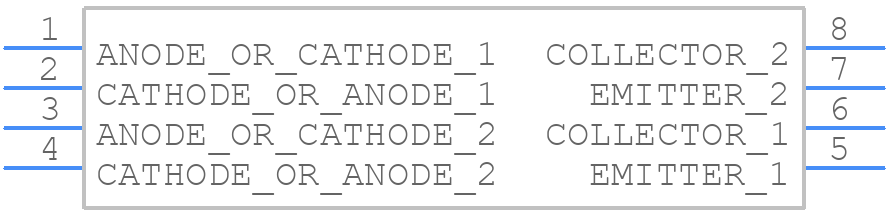

Use the download button to access the ACPL-824-300E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Optocoupler
