A good PCB layout for the ACPL-827-30CE involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device.
The ACPL-827-30CE has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. It's recommended to use an ESD wrist strap or mat, and to handle the device by the body rather than the leads.
The ACPL-827-30CE is rated for up to 30V, but it's not recommended to use it in high-voltage applications above 30V. Exceeding the maximum voltage rating can damage the device and affect its reliability.
To troubleshoot issues with the ACPL-827-30CE, start by checking the power supply voltage, ensuring that it's within the recommended range. Then, verify that the input and output circuits are properly connected and that there are no shorts or opens on the PCB. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-827-30CE Overview

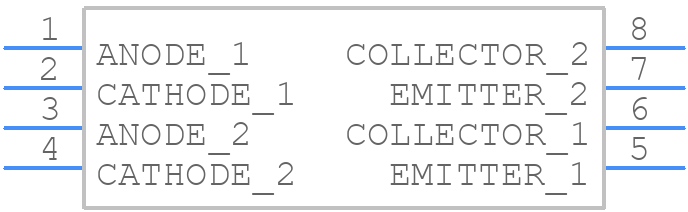

Use the download button to access the ACPL-827-30CE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Optocoupler
