ACPL-844-W60E - Avago Technologies

ACPL-844-W60E Details

• Manufacturer Part Number:

  ACPL-844-W60E

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

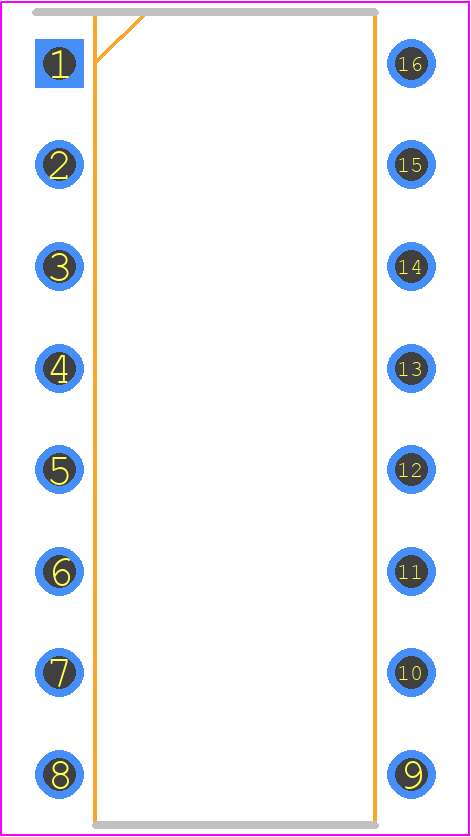

  0.400 INCH, ROHS COMPLIANT, DIP-16

• Reach Compliance Code:

  Compliant

• HTS Code:

  8541.40.80.00

• Manufacturer:

  Avago Technologies

• YTEOL:

  6

• Additional Feature:

  UL RECOGNIZED

• Coll-Emtr Bkdn Voltage-Min:

  70 V

• Configuration:

  SEPARATE, 4 CHANNELS

• Current Transfer Ratio-Min:

  20%

• Current Transfer Ratio-Nom:

  20%

• Dark Current-Max:

  100 nA

• Forward Current-Max:

  0.05 A

• Forward Voltage-Max:

  1.4 V

• Isolation Voltage-Max:

  5000 V

• JESD-609 Code:

  e3

• Mounting Feature:

  THROUGH HOLE MOUNT

• Number of Elements:

  4

• On-State Current-Max:

  0.05 A

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -30 °C

• Optoelectronic Device Type:

  AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

• Power Dissipation-Max:

  0.15 W

• Response Time-Max:

  0.000018 s

• Surface Mount:

  NO

• Terminal Finish:

  TIN
