A good PCB layout for the ACPL-847-00GE involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation of the ACPL-847-00GE in high-temperature environments, it's essential to provide adequate heat sinking, ensure good airflow, and follow the recommended operating temperature range of -40°C to 100°C. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
The ACPL-847-00GE has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap or mat, storing the devices in anti-static packaging, and avoiding direct contact with the device pins.
The ACPL-847-00GE is not certified for use in safety-critical applications, such as those requiring IEC 61508 or ISO 26262 certification. However, it can be used in non-safety-critical applications where isolation is required, such as in industrial automation or medical devices.
To troubleshoot issues with the ACPL-847-00GE, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input and output signals using an oscilloscope, and check for any signs of overheating or physical damage. If the issue persists, consult the datasheet and application notes or contact Broadcom Limited's technical support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-847-00GE Overview

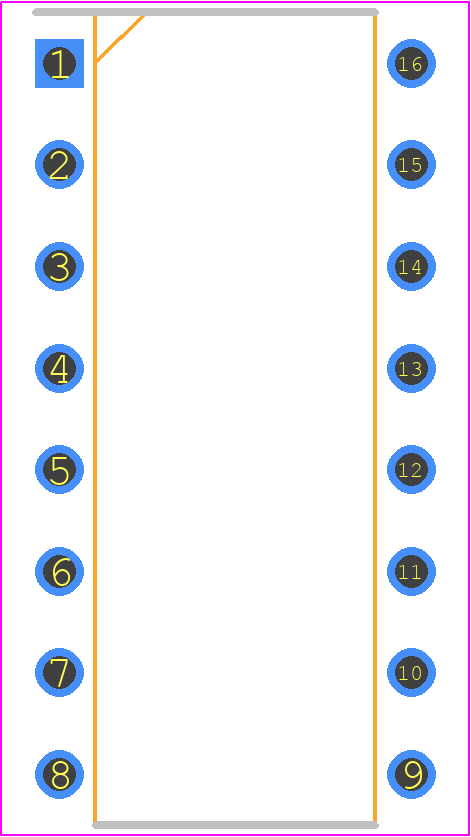

Use the download button to access the ACPL-847-00GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Optocoupler
